BNVD-G

Night Vision Depot

BNVD-G

CALL OR EMAIL US FOR PRICING ON THIS ITEM

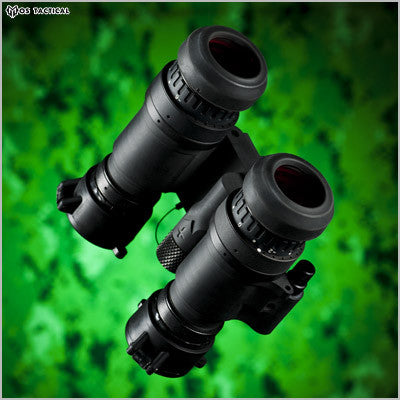

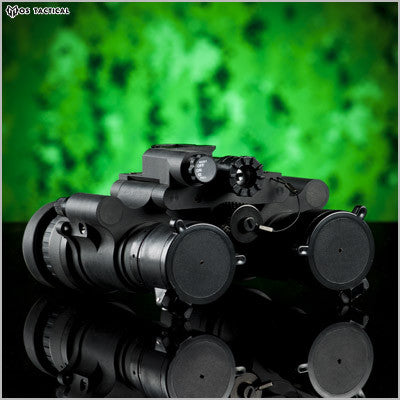

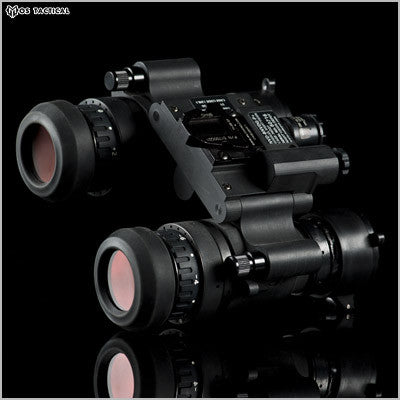

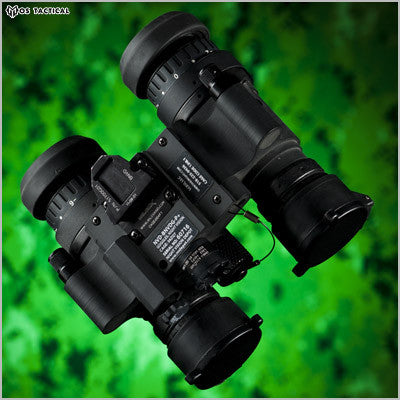

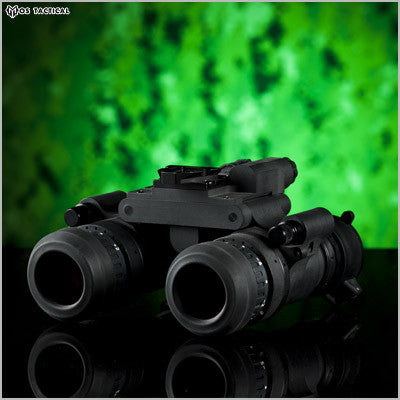

The Night Vision Depot (NVD) Binocular Night Vision Device with Gain Control (BNVD-G) is a brand new dual tube night vision goggle which offers outstanding depth perception and is now enhanced with Gain Control. Each eyepiece has its own gain control knob to allow the user to adjust the tube brightness (gain) lower to compensate for overly bright condtions or to increase the gain under extreme dark conditions. The user can also lower the gain in one eye so that when the binoculars are removed one eye is more dark adapted.



The BNVD-G can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. Each arm is tight enough so that the rotated arm will not fall down, but stay in its user adjusted position. To use as a binocular, rotate both sides down or when night vision is no longer needed, shut off and rotate both sides up and out of the way. Never before could you utilize the depth perception of a collimated dual tube goggle and the convenience of a monocular in one system without switching equipment.



The NVD-BNVD-G utilizes MIL SPEC optics and can be used with head and helmet mounting options from the AN/PVS-7B/D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15 and AN/PVS-18. Switching from one mounting system to another can be accomplished by the end user within minutes.


Power for the NVD-BNVD-G is supplied via one AA battery for up to 30 hours of continuous use. The system is also fully submersible up to 66 feet. The NVD-BNVD-G also uses standard AN/PVS-7B/D and PVS-14 parts and accessories for simplified in-the-field supportability. These parts include demist shields, sacrificial windows, LIFs, lens caps, eyecups, neckcord, soft case, head or helmet mount, IR spot/flood lens, 3X magnifiers & compass assembly.





Features:

Generation III Pinnacle ITT Tube

One AA Battery Usage

Use as Binocular, Monocular or Stow Upright

FIVE Year Warranty





All Units Include: Soft Carry Case, AA Batteries (2), Operators Manual, Neckcord, Objective and Eyepiece Lens Caps, Eyecups, Lens Paper, 7D Headmount Assembly, Demist Shields, Sacrificial Windows and IR Flood/Spot Lens Assembly, Operator's Card, and Dovetail Mounting Adapter.





System Specs:

Field of View 40˚
Magnification one power (1X)
Diopter Adjustment -6 to +2 Diopters
Eye Relief 25mm
Objective Focus Range 9.8" to infinity
Focus Range 25cm to infinity
Power Source 1 AA-Size Battery
Operation Time 30 Hours Avg.
Weight 670 grams
Size 5"L x 5"W x 3"H
